数据分析的主力Datasets/DataFrames
DataSets概述
Spark中,Dataset就是一组各式各样的列,类似一张excel表格或关系型数据库中的表。可以用于类型检查和语义化查询。
在R和Python语言中,使用的依然是DataFrame类,但是包含了所有的DataSet APIs。因此可以这样认为,DataSet在Python和R语言中就叫做DataFrame。
在Scala和Java语言中,使用的是DataSet接口,不存在DataFrame。

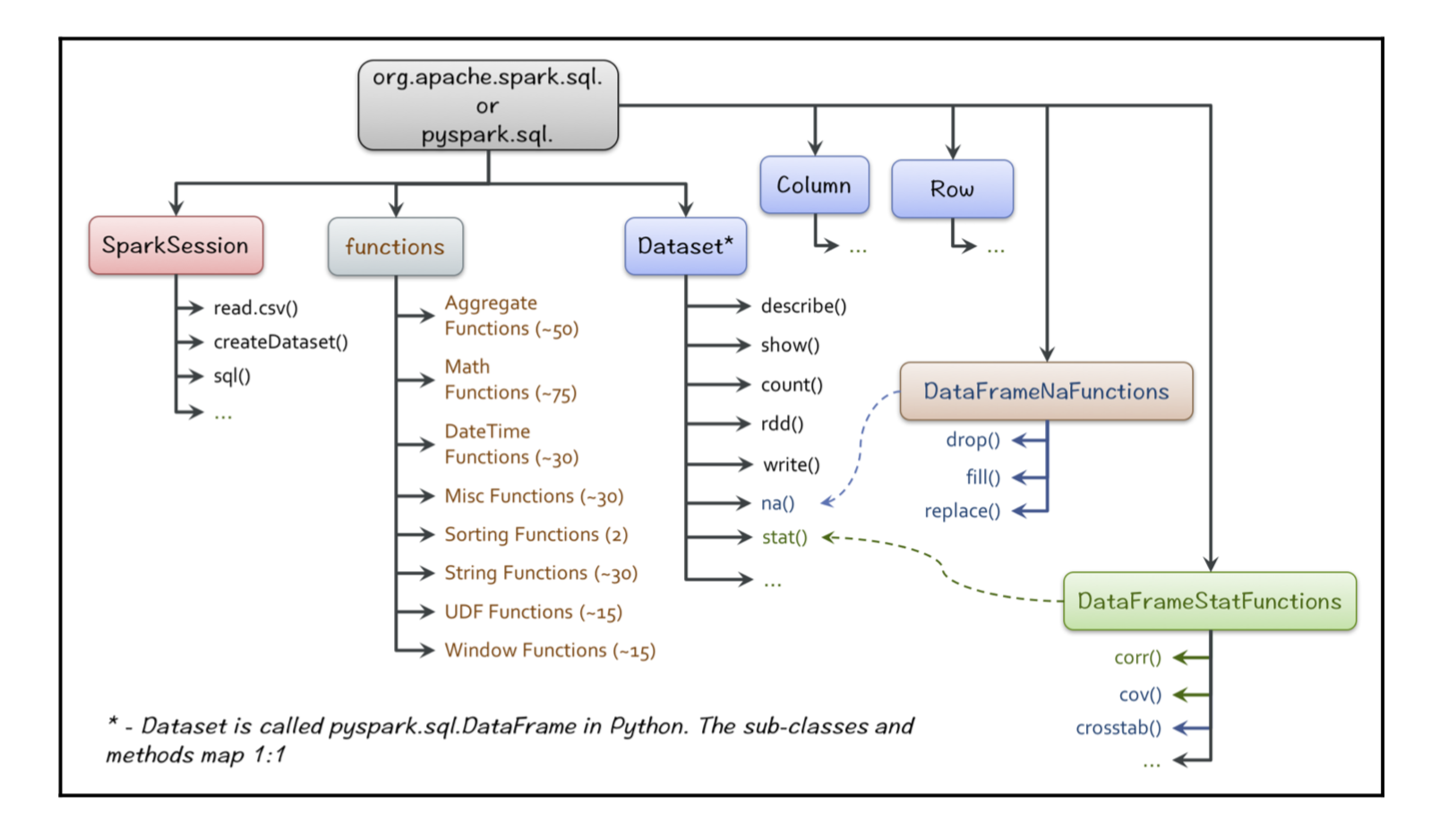

DataSet API概览

下面的例子使用的数据文件下载地址:
https://github.com/xsankar/fdps-v3
常见的Dataset接口和函数
读写操作
这个例子读取的csv文件内容如下:
1
2
3
4
5
6
|
$ cat data/spark-csv/cars.csv
year,make,model,comment,blank
2012,Tesla,S,No comment,
1997,Ford,E350,Go get one now they are going fast,
2015,Chevy,Volt,,
2016,Volvo,XC90,Good Car !,
|
读取和保存
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
# -*- coding: utf-8 -*-
from pyspark.sql import SparkSession
import os
spark = SparkSession.builder.appName("Datasets APIs Demo")\
.master("local")\
.config("spark.logConf", "true")\
.config("spark.logLevel", "ERROR")\
.getOrCreate()
print(f"Running Spark Version {spark.version}")
filePath = "."
cars = spark.read.option("header", "true")\
.option("inferSchema", "true")\
.csv(os.path.join(filePath, "data/spark-csv/cars.csv"))
print(f"Cars has {cars.count()} rows")
cars.printSchema()
# 保存为csv格式
cars.write.mode("overwrite").option("header", "true").csv(
os.path.join(filePath, "data/cars-out-csv.csv")
)
# 按年分区,保存为parquet格式
cars.write.mode("overwrite").partitionBy("year").parquet(
os.path.join(filePath, "data/cars-out-pqt"))
spark.stop()
|
mode
参数有:
overwrite
: 如果文件存在,则覆写已经存在的文件
append
: 追加写入到已经存在的文件
ignore
: 会忽略Data Exists
, 并且不会保存数据,使用该模式需要特别注意
error
: 如果文件存在,抛出异常
查看保存结果
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
$ tree data/cars-out-csv.csv data/cars-out-pqt
data/cars-out-csv.csv
├── _SUCCESS
└── part-00000-aa27bc5f-aaeb-4f0c-804f-2d5320803d0d-c000.csv
data/cars-out-pqt
├── _SUCCESS
├── year=1997
│ └── part-00000-160cc90f-7c7a-4d88-b1c8-16c4fd8ec831.c000.snappy.parquet
├── year=2012
│ └── part-00000-160cc90f-7c7a-4d88-b1c8-16c4fd8ec831.c000.snappy.parquet
├── year=2015
│ └── part-00000-160cc90f-7c7a-4d88-b1c8-16c4fd8ec831.c000.snappy.parquet
└── year=2016
└── part-00000-160cc90f-7c7a-4d88-b1c8-16c4fd8ec831.c000.snappy.parquet
4 directories, 7 files
|
从保存结果可以看出,保存为csv文件时,是一个目录,而不是单个的csv文件。
保存为parquet
格式时,由于按照年来分区,因此生成了4个年份的子目录。这样做的好处是可以节约查询时间,比如当查询语句包含year=2015
, 只会去查询year=2015
这个目录的数据。在数据量大时,非常有助于提高查询效率。
读取保存的数据
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
# -*- coding: utf-8 -*-
from pyspark.sql import SparkSession
import os
spark = SparkSession.builder.appName("Datasets APIs Demo")\
.master("local")\
.config("spark.logConf", "true")\
.config("spark.logLevel", "ERROR")\
.getOrCreate()
print(f"Running Spark Version {spark.version}")
filePath = "."
cars = spark.read.parquet(os.path.join(filePath, "data/cars-out-pqt"))
print(f"Cars has {cars.count()} rows")
cars.printSchema()
spark.stop()
|
聚合函数
首页让我们加载测试数据
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
|
>>> import os
>>> filePath = "."
>>> cars = spark.read.option('header', 'true')\
... .option('inferSchema', 'true')\
... .csv(os.path.join(filePath, 'data/car-data/car-mileage.csv'))
>>> print(f"Cars has {cars.count()} rows")
Cars has 32 rows
>>> cars.printSchema()
root
|-- mpg: double (nullable = true)
|-- displacement: double (nullable = true)
|-- hp: integer (nullable = true)
|-- torque: integer (nullable = true)
|-- CRatio: double (nullable = true)
|-- RARatio: double (nullable = true)
|-- CarbBarrells: integer (nullable = true)
|-- NoOfSpeed: integer (nullable = true)
|-- length: double (nullable = true)
|-- width: double (nullable = true)
|-- weight: integer (nullable = true)
|-- automatic: integer (nullable = true)
>>> cars.show(5)
+-----+------------+---+------+------+-------+------------+---------+------+-----+------+---------+
| mpg|displacement| hp|torque|CRatio|RARatio|CarbBarrells|NoOfSpeed|length|width|weight|automatic|
+-----+------------+---+------+------+-------+------------+---------+------+-----+------+---------+
| 18.9| 350.0|165| 260| 8.0| 2.56| 4| 3| 200.3| 69.9| 3910| 1|
| 17.0| 350.0|170| 275| 8.5| 2.56| 4| 3| 199.6| 72.9| 3860| 1|
| 20.0| 250.0|105| 185| 8.25| 2.73| 1| 3| 196.7| 72.2| 3510| 1|
|18.25| 351.0|143| 255| 8.0| 3.0| 2| 3| 199.9| 74.0| 3890| 1|
|20.07| 225.0| 95| 170| 8.4| 2.76| 1| 3| 194.1| 71.8| 3365| 0|
+-----+------------+---+------+------+-------+------------+---------+------+-----+------+---------+
only showing top 5 rows
|
descripe
统计列
1
2
3
4
5
6
7
8
9
10
|
>>> cars.describe("mpg","hp","weight","automatic").show()
+-------+-----------------+-----------------+----------------+-------------------+
|summary| mpg| hp| weight| automatic|
+-------+-----------------+-----------------+----------------+-------------------+
| count| 32| 32| 32| 32|
| mean| 20.223125| 136.875| 3586.6875| 0.71875|
| stddev|6.318289089312789|44.98082028541039|947.943187269323|0.45680340939917435|
| min| 11.2| 70| 1905| 0|
| max| 36.5| 223| 5430| 1|
+-------+-----------------+-----------------+----------------+-------------------+
|
分组统计
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
>>> cars.groupBy("automatic").avg("mpg","torque").show()
+---------+------------------+-----------------+
|automatic| avg(mpg)| avg(torque)|
+---------+------------------+-----------------+
| 1|17.324782608695646|257.3636363636364|
| 0|27.630000000000006| 109.375|
+---------+------------------+-----------------+
# 不分组的情况
>>> cars.groupBy().avg("mpg","torque").show()
+---------+-----------+
| avg(mpg)|avg(torque)|
+---------+-----------+
|20.223125| 217.9|
+---------+-----------+
|
其它的聚合函数
1
2
3
4
5
6
7
8
|
>>> from pyspark.sql.functions import avg, mean
>>> cars.agg(avg(cars["mpg"]), mean(cars["torque"]) ).show()
+---------+-----------+
| avg(mpg)|avg(torque)|
+---------+-----------+
|20.223125| 217.9|
+---------+-----------+
|
统计函数
从前面的DataSets API概览图里可以看到,统计相关的函数都是在sql.stat.*
下面。
下面看一个利用统计函数的例子
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
|
>>> import os
>>> filePath = "."
>>> cars = spark.read.option('header', 'true')\
... .option('inferSchema', 'true')\
... .csv(os.path.join(filePath, 'data/car-data/car-mileage.csv'))
>>> cars.show(5)
+-----+------------+---+------+------+-------+------------+---------+------+-----+------+---------+
| mpg|displacement| hp|torque|CRatio|RARatio|CarbBarrells|NoOfSpeed|length|width|weight|automatic|
+-----+------------+---+------+------+-------+------------+---------+------+-----+------+---------+
| 18.9| 350.0|165| 260| 8.0| 2.56| 4| 3| 200.3| 69.9| 3910| 1|
| 17.0| 350.0|170| 275| 8.5| 2.56| 4| 3| 199.6| 72.9| 3860| 1|
| 20.0| 250.0|105| 185| 8.25| 2.73| 1| 3| 196.7| 72.2| 3510| 1|
|18.25| 351.0|143| 255| 8.0| 3.0| 2| 3| 199.9| 74.0| 3890| 1|
|20.07| 225.0| 95| 170| 8.4| 2.76| 1| 3| 194.1| 71.8| 3365| 0|
+-----+------------+---+------+------+-------+------------+---------+------+-----+------+---------+
only showing top 5 rows
# 计算相关性
>>> cor = cars.stat.corr("hp", "weight")
>>> print("hp to weight: Correlation = %.4f" % cor)
hp to weight: Correlation = 0.8834
# 计算协方差
>>> cov = cars.stat.cov("hp", "weight")
>>> print("hp to weight: Covariance = %.4f" % cov)
hp to weight: Covariance = 37667.5403
# 交叉表显示
>>> cars.stat.crosstab("automatic", "NoOfSpeed").show()
+-------------------+---+---+---+
|automatic_NoOfSpeed| 3| 4| 5|
+-------------------+---+---+---+
| 1| 23| 0| 0|
| 0| 1| 5| 3|
+-------------------+---+---+---+
|
交叉表的功能是分组统计数据。上面的交叉表类似下面的效果
1
2
3
4
5
6
7
8
9
10
11
|
>>> cars.createOrReplaceGlobalTempView("Cars")
>>> spark.sql("Select automatic, NoOfSpeed, count(*) from global_temp.Cars group by automatic, NoOfSpeed").show()
+---------+---------+--------+
|automatic|NoOfSpeed|count(1)|
+---------+---------+--------+
| 0| 5| 3|
| 1| 3| 23|
| 0| 3| 1|
| 0| 4| 5|
+---------+---------+--------+
|
交叉表在数据统计中非常有用,有利于我们观察各组数据直接的关系。下面是利用交叉表查看泰坦尼克号中幸存者和他的属性关系。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
|
>>> import os
>>> filePath = "."
>>> passengers = spark.read.option("header", "true")\
... .option("inferSchema", "true")\
... .csv(os.path.join(filePath, 'data/titanic3_02.csv'))
>>> result = passengers.select(passengers['Pclass'], passengers['Survived'], passengers['Gender'], passengers['Age'],
... passengers['SibSp'], passengers['Parch'],passengers['Fare'])
...
# Pclass: 票的等级
# SibSp: 兄弟姐妹/配偶在船上
# Parch: 父母/子女在船上
# Fare: 票价
>>> result.show(5)
+------+--------+------+------+-----+-----+--------+
|Pclass|Survived|Gender| Age|SibSp|Parch| Fare|
+------+--------+------+------+-----+-----+--------+
| 1| 1|female| 29.0| 0| 0|211.3375|
| 1| 1| male|0.9167| 1| 2| 151.55|
| 1| 0|female| 2.0| 1| 2| 151.55|
| 1| 0| male| 30.0| 1| 2| 151.55|
| 1| 0|female| 25.0| 1| 2| 151.55|
+------+--------+------+------+-----+-----+--------+
only showing top 5 rows
>>> result.printSchema()
root
|-- Pclass: integer (nullable = true)
|-- Survived: integer (nullable = true)
|-- Gender: string (nullable = true)
|-- Age: double (nullable = true)
|-- SibSp: integer (nullable = true)
|-- Parch: integer (nullable = true)
|-- Fare: double (nullable = true)
>>> result.groupBy('Gender').count().show()
+------+-----+
|Gender|count|
+------+-----+
|female| 466|
| male| 843|
+------+-----+
>>> result.stat.crosstab("Survived", "Gender").show()
+---------------+------+----+
|Survived_Gender|female|male|
+---------------+------+----+
| 1| 339| 161|
| 0| 127| 682|
+---------------+------+----+
>>> result.stat.crosstab("Survived","SibSp").show()
+--------------+---+---+---+---+---+---+---+
|Survived_SibSp| 0| 1| 2| 3| 4| 5| 8|
+--------------+---+---+---+---+---+---+---+
| 1|309|163| 19| 6| 3| 0| 0|
| 0|582|156| 23| 14| 19| 6| 9|
+--------------+---+---+---+---+---+---+---+
# 因为Age是浮点型,直接用Age创建的交叉表的结果非常长,不便于观察。所以将它转换为整型
>>> ageDist = result.select(result["Survived"], (result["age"] - result["age"] % 10).cast("int").name("AgeBracket"))
>>> ageDist.show(5)
+--------+----------+
|Survived|AgeBracket|
+--------+----------+
| 1| 20|
| 1| 0|
| 0| 0|
| 0| 30|
| 0| 20|
+--------+----------+
only showing top 5 rows
# 20s和30s之间的人最多,还有很多不知道年龄的人
>>> ageDist.crosstab("Survived", "AgeBracket").show()
+-------------------+---+---+---+---+---+---+---+---+---+----+
|Survived_AgeBracket| 0| 10| 20| 30| 40| 50| 60| 70| 80|null|
+-------------------+---+---+---+---+---+---+---+---+---+----+
| 1| 50| 56|127| 98| 52| 32| 10| 1| 1| 73|
| 0| 32| 87|217|134| 83| 38| 22| 6| 0| 190|
+-------------------+---+---+---+---+---+---+---+---+---+----+
|
科学计算函数
科学统计函数基本都在sql.functions
下面。
如: log(), log10(), sqrt(), cbrt(), exp(), pow(), sin(), cos(), tan(), acos(), asin(), atan(), toDegrees(), toRadians()
使用示例如下:
创建一个DataFrame
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
|
>>> from pyspark.sql import Row
>>> row = Row("val")
>>> l = [1,2,3]
>>> rdd = sc.parallelize(l)
# 有两种方式将rdd转换为dataframe
# 方法一:
>>> df = spark.createDataFrame(rdd.map(row))
# 方法二
# >>> df = rdd.map(row).toDF()
>>> df.show()
+---+
|val|
+---+
| 1|
| 2|
| 3|
+---+
|
一些示例
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
|
>>> from pyspark.sql.functions import log, log10, sart,log1p
>>> df.select(df['val'], log(df['val']).name('ln')).show()
+---+------------------+
|val| ln|
+---+------------------+
| 1| 0.0|
| 2|0.6931471805599453|
| 3|1.0986122886681098|
+---+------------------+
>>> df.select(df['val'], log10(df['val']).name('log10')).show()
+---+-------------------+
|val| log10|
+---+-------------------+
| 1| 0.0|
| 2| 0.3010299956639812|
| 3|0.47712125471966244|
+---+-------------------+
>>> df.select(df['val'], sqrt(df['val']).name('sqrt')).show()
+---+------------------+
|val| sqrt|
+---+------------------+
| 1| 1.0|
| 2|1.4142135623730951|
| 3|1.7320508075688772|
+---+------------------+
>>> df.select(df['val'], log1p(df['val']).name('ln1p')).show()
+---+------------------+
|val| ln1p|
+---+------------------+
| 1|0.6931471805599453|
| 2|1.0986122886681096|
| 3|1.3862943611198906|
+---+------------------+
|
对于给定的直角三角形的两个直角边,求其斜边的长度
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
|
>>> import os
>>> filePath = '.'
>>> data = spark.read.option("header", "true")\
... .option("inferScheam", "true")\
... .csv(os.path.join(filePath, "data/hypot.csv"))
>>>
>>> data.show()
+---+---+
| X| Y|
+---+---+
| 3| 4|
| 5| 12|
| 7| 24|
| 9| 40|
| 11| 60|
| 13| 84|
+---+---+
>>> from pyspark.sql.functions import hypot
>>> data.select(data["X"], data["Y"],
... hypot(data["X"], data["Y"]).name("hypot")).show()
+---+---+-----+
| X| Y|hypot|
+---+---+-----+
| 3| 4| 5.0|
| 5| 12| 13.0|
| 7| 24| 25.0|
| 9| 40| 41.0|
| 11| 60| 61.0|
| 13| 84| 85.0|
+---+---+-----+
|
实战
下面让我们通过一个实战,使用前面学到的接口和函数。
我们使用Northwind Sales的数据集来分析下面的问题:
- How many orders were placed by each customer?
- How many orders were placed in each country?
- How many orders were placed for each month/year?
- What is the total number of sales for each customer, year-wise?
- What * is the average order by customer, year-wise?
读取数据
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
|
>>> import os
>>> filePath = '.'
>>> orders = spark.read.option("header", "true")\
... .option("inferSchema", "true")\
... .csv(os.path.join(filePath, "data/NW/NW-Orders-01.csv")
... )
>>> print(f"Orders has {orders.count()} rows")
Orders has 830 rows
>>> orders.show(5)
+-------+----------+----------+-------------------+-----------+
|OrderID|CustomerID|EmployeeID| OrderDate|ShipCountry|
+-------+----------+----------+-------------------+-----------+
| 10248| VINET| 5|1996-07-02 00:00:00| France|
| 10249| TOMSP| 6|1996-07-03 00:00:00| Germany|
| 10250| HANAR| 4|1996-07-06 00:00:00| Brazil|
| 10251| VICTE| 3|1996-07-06 00:00:00| France|
| 10252| SUPRD| 4|1996-07-07 00:00:00| Belgium|
+-------+----------+----------+-------------------+-----------+
only showing top 5 rows
>>> orders.printSchema()
root
|-- OrderID: integer (nullable = true)
|-- CustomerID: string (nullable = true)
|-- EmployeeID: integer (nullable = true)
|-- OrderDate: timestamp (nullable = true)
|-- ShipCountry: string (nullable = true)
>>> orderDetails = spark.read.option("header", "true")\
... .option("inferSchema", "true")\
... .csv(os.path.join(filePath, "data/NW/NW-Order-Details.csv"))
>>> print(f"Order Details has {orderDetails.count()} rows")
Order Details has 2155 rows
>>> orderDetails.show(5)
+-------+---------+---------+---+--------+
|OrderID|ProductId|UnitPrice|Qty|Discount|
+-------+---------+---------+---+--------+
| 10248| 11| 14.0| 12| 0.0|
| 10248| 42| 9.8| 10| 0.0|
| 10248| 72| 34.8| 5| 0.0|
| 10249| 14| 18.6| 9| 0.0|
| 10249| 51| 42.4| 40| 0.0|
+-------+---------+---------+---+--------+
only showing top 5 rows
>>> orderDetails.printSchema()
root
|-- OrderID: integer (nullable = true)
|-- ProductId: integer (nullable = true)
|-- UnitPrice: double (nullable = true)
|-- Qty: integer (nullable = true)
|-- Discount: double (nullable = true)
|
解答问题1: How many orders were placed by each customer?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
>>> orderByCustomer = orders.groupBy("CustomerID").count()
>>> from pyspark.sql.functions import desc
>>> orderByCustomer.sort(desc("count")).show(5)
+----------+-----+
|CustomerID|count|
+----------+-----+
| SAVEA| 31|
| ERNSH| 30|
| QUICK| 28|
| HUNGO| 19|
| FOLKO| 19|
+----------+-----+
|
解答问题2: How many orders were placed in each country?
1
2
3
4
5
6
7
8
9
10
11
12
13
|
>>> orderByCountry = orders.groupBy("ShipCountry").count()
>>> orderByCountry.sort(desc("count")).show(5)
+-----------+-----+
|ShipCountry|count|
+-----------+-----+
| Germany| 122|
| USA| 122|
| Brazil| 82|
| France| 77|
| UK| 56|
+-----------+-----+
only showing top 5 rows
|
后面三个问题可以如下解答
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
|
# -*- coding: utf-8 -*-
from pyspark.sql import SparkSession
from pyspark.sql.functions import to_date, month, year
import os
spark = SparkSession.builder.appName("Datasets APIs Demo") \
.master("local") \
.config("spark.logConf", "true") \
.config("spark.logLevel", "ERROR") \
.getOrCreate()
print(f"Running Spark Version {spark.version}")
filePath = "."
orders = spark.read.option("header", "true") \
.option("inferSchema", "true") \
.csv(os.path.join(filePath, "data/NW/NW-Orders-01.csv"))
orderDetails = spark.read.option("header", "true") \
.option("inferSchema", "true") \
.csv(os.path.join(filePath, "data/NW/NW-Order-Details.csv"))
result = orderDetails.select(orderDetails['OrderID'],
((orderDetails['UnitPrice'] * orderDetails['Qty'] - (
orderDetails['UnitPrice'] * orderDetails['Qty'] * orderDetails['Discount'])).
name('OrderPrice')))
result.show(5)
# 设置DataFrame orderTot的别名为OrderTotal
orderTot = result.groupBy('OrderID').sum('OrderPrice').alias('OrderTotal')
orderTot.sort("OrderID").show(5)
orders_df = orders.join(orderTot, orders["OrderID"] == orderTot["OrderID"], "inner") \
.select(orders["OrderID"],
orders["CustomerID"],
orders["OrderDate"],
orders["ShipCountry"].alias("ShipCountry"),
orderTot["sum(OrderPrice)"].alias("Total"))
orders_df.sort("CustomerID").show()
# 过滤出空行
orders_df.filter(orders_df["Total"].isNull()).show()
# 添加Date列
orders_df2 = orders_df.withColumn('Date', to_date(orders_df['OrderDate']))
orders_df2.show(5)
orders_df2.printSchema()
# 添加Month和Year列
orders_df3 = orders_df2.withColumn("Month", month(orders_df2["OrderDate"])) \
.withColumn("Year", year(orders_df2["OrderDate"]))
orders_df3.show(5)
orders_df3.printSchema()
# 问题3
ordersByYM = orders_df3.groupBy("Year", "Month").sum("Total").alias("Total")
ordersByYM.sort(ordersByYM["Year"], ordersByYM["Month"]).show()
# 问题4
ordersByCY = orders_df3.groupBy("CustomerID", "Year").sum("Total").alias("Total")
ordersByCY.sort(ordersByCY["CustomerID"], ordersByCY["Year"]).show()
# 问题5
ordersCA = orders_df3.groupBy("CustomerID").avg("Total").alias("Total")
ordersCA.sort("avg(Total)", ascending=False).show()
spark.stop()
|
